UTL Standard Series Locking Assemblies
Standart Seri Konik Kilitler

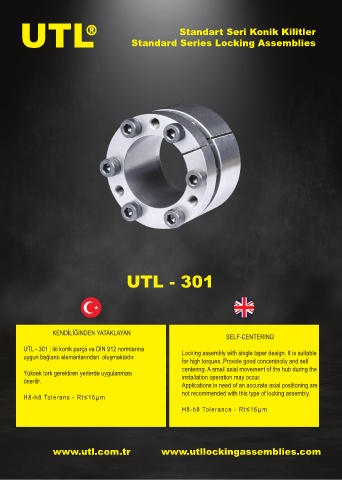

UTL - 301
KENDİLİĞİNDEN YATAKLAYAN
SELF-CENTERING
UTL - 301 ; iki konik parça ve DIN 912 normlarına
uygun bağlantı elemanlarından oluşmaktadır. Locking assembly with single taper design. It is suitable
for high torques. Provide good concentricity and self
centering. A small axial movement of the hub during the
Yüksek tork gerektiren yerlerde uygulanması installation operation may occur.
önerilir.
Applications in need of an accurate axial positioning are
not recommended with this type of locking assembly.
H8-h8 Tolerans - Rt≤16µm
H8-h8 Tolerance - Rt≤16µm
