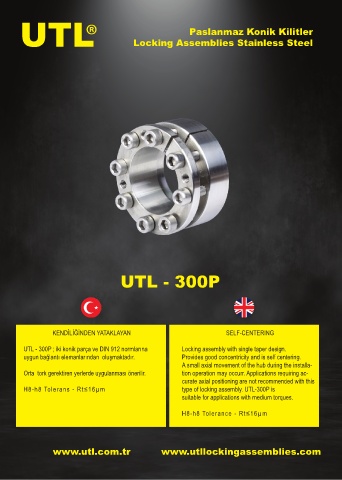

UTL Locking Assemblies Stainless Steel
Paslanmaz Konik Kilitler
UTL - 300P
KENDİLİĞİNDEN YATAKLAYAN SELF-CENTERING
UTL - 300P ; iki konik parça ve DIN 912 normlarına Locking assembly with single taper design.
uygun bağlantı elemanlarından oluşmaktadır. Provides good concentricity and is self centering.
A small axial movement of the hub during the installa-
Orta tork gerektiren yerlerde uygulanması önerilir. tion operation may occurr. Applications requiring ac-
curate axial positioning are not recommended with this
H8-h8 Tolerans - Rt≤16µm type of locking assembly. UTL-300P is
suitable for applications with medium torques.
H8-h8 Tolerance - Rt≤16µm
