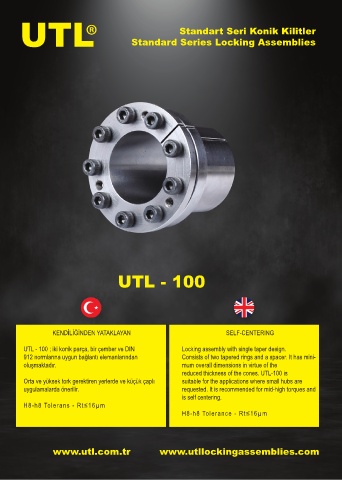

UTL Standard Series Locking Assemblies
Standart Seri Konik Kilitler
UTL - 100
KENDİLİĞİNDEN YATAKLAYAN SELF-CENTERING
UTL - 100 ; iki konik parça, bir çember ve DIN Locking assembly with single taper design.
912 normlarına uygun bağlantı elemanlarından Consists of two tapered rings and a spacer. It has mini-
oluşmaktadır. mum overall dimensions in virtue of the
reduced thickness of the cones. UTL-100 is
Orta ve yüksek tork gerektiren yerlerde ve küçük çaplı suitable for the applications where small hubs are
uygulamalarda önerilir. requested. It is recommended for mid-high torques and
is self centering.
H8-h8 Tolerans - Rt≤16µm
H8-h8 Tolerance - Rt≤16µm
