UTL Mini Series
Mini Seri

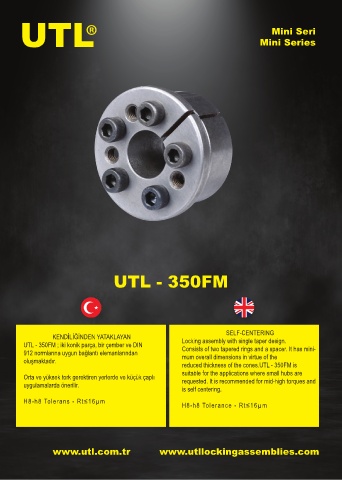

UTL - 350FM
SELF-CENTERING
KENDİLİĞİNDEN YATAKLAYAN
UTL - 350FM ; iki konik parça, bir çember ve DIN Locking assembly with single taper design.
Consists of two tapered rings and a spacer. It has mini-
912 normlarına uygun bağlantı elemanlarından mum overall dimensions in virtue of the
oluşmaktadır.
reduced thickness of the cones.UTL - 350FM is
suitable for the applications where small hubs are
Orta ve yüksek tork gerektiren yerlerde ve küçük çaplı requested. It is recommended for mid-high torques and
uygulamalarda önerilir.
is self centering.
H8-h8 Tolerans - Rt≤16µm H8-h8 Tolerance - Rt≤16µm
